SNAPSHOT: A single, pallet-sized battery from a 32A temp feed supported over 600A of equipment on a residential high-rise building project in place of multiple diesel generators.
Customer
McNab
Application
Construction
Location
Gold Coast, QLD
THE BRIEF
Problem We Helped Solve
Like most construction sites, only 80A of temporary building supply was available from the street, far below the >600A needed to operate all of the on-site equipment. Under traditional methods, the site would have required at least two 220kVA generators, resulting in high fuel consumption, emissions, noise and increased operating costs.
What Needed to be Powered
High-demand construction equipment including:
– 250A tower crane
– 63A concrete pump
– Two construction hoists
– General site building power
Alternatives Assessed
Multiple diesel generators would have been required – at least 2 × 220kVA generators.
THE POWERSHIFT SOLUTION

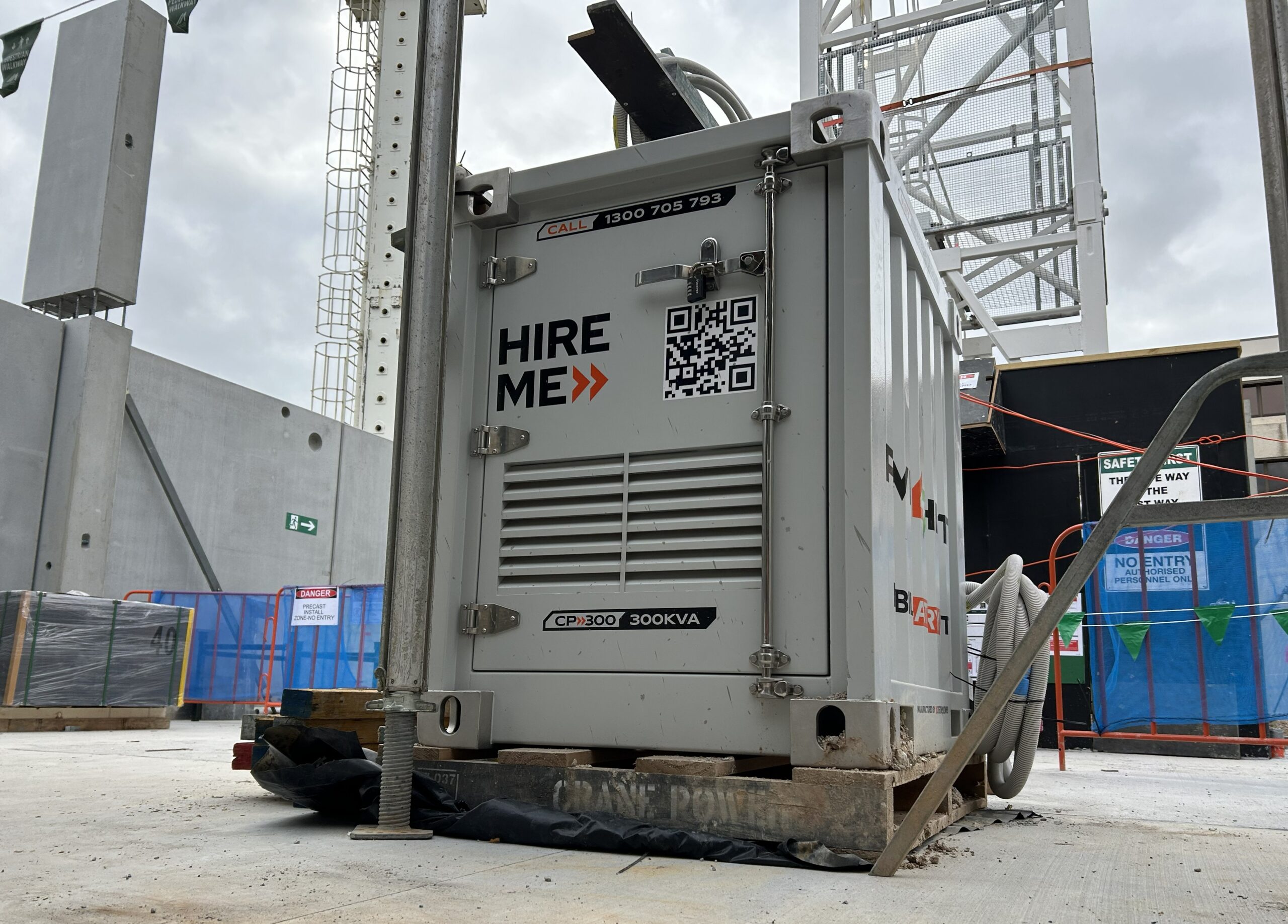

CP300 units are highly compact, plug-and-play battery systems specially designed to power high peak electric machinery such as cranes, hoists, booms, welders and more.
THE HIGHLIGHTS
Although the calculated maximum demand exceeded 600A, real-world load diversity means the Powershift battery can efficiently manage peaks without compromising performance. The battery remains continuously trickle-charged from a 32A supply, discharging only when required and maintaining above 90% state-of-charge throughout the whole project.
46t CO₂ Saved in the Early Stages
Significant emissions reduction, with over 46 tonnes of CO₂ saved in the first six months.
Reduced Costs
Far cheaper to operate than multiple generators, with no fuel, servicing or maintenance costs.
Compact Solution
The small size of the unit enabled easy deployment on a space constrained site.
